Cheese Winders
A One International has been always renowned for Precision Cross Winders, popularly known as Cheese winders or Tape Winders.
The winder experiences in winding equipment for raffia tapes and rope yarns.
With the best formula of Lowest running costs and affordable initial investment, A One International has been pioneer in the winding business.
Features:
ATW SERIES
(iATW) High Speed INVERTER DRIVEN CHEESE WINDER
(ATW-M) High Speed MAGNETIC DRIVEN CHEESE WINDER

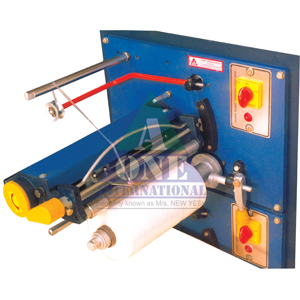

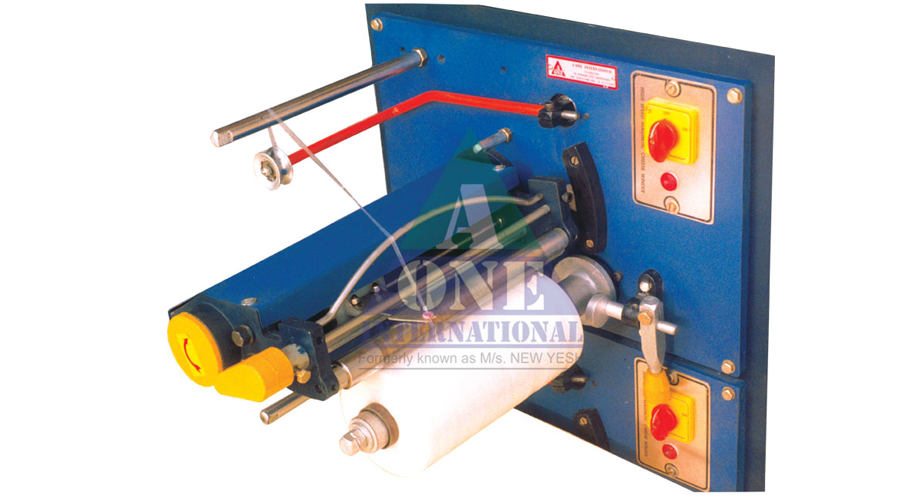

The tape winders iATW are precision cross winders. They produce perfectly wound bobbins with optimal tape tension at speeds of up to 450 m/min., perfect for the subsequent weaving process.
These are precision winders in which each spindle is driven by an AC motor with individual frequency inverter. The drive transmission for traverse mechanism is via timing belts and pulleys.
Technical Data:
| PRINCIPLE | TENSION AUTOMATIC CONROLLING DEVICE:ELECTRONIC, FREQUENCY CONTROLLED |
|---|---|
| TAPE WIDTH | 1.8-4 mm |
| TAPE MATERIAL | P.P./H.D.P.E. |
| SPEED CONTROL | FREQUENCY DRIVE |
| WINDING SPEED | 200-450 m/min. |
| DENIER RANGE | 400-2000 |
| TRAVERSE | 200mm (CUSTOMIZABLE ON REQUEST) |
| MAX. BOBBIN SIZE | 130-150 mm |
| CORE DIMENSIONS (CUSTOMIZABLE) |
ID: 35 mm OD: 40 mm Length: 218 mm |
| STRUCTURE LAYOUT | 6 HIGH 3/4/5/6/7 ACROSS |
The winder has been specially designed for winding up flat on cylindrical cores. It meets the requirements for high precision and flawless quality. The winders are mounted on distortion-free frames
ATW-M magnetic tape winder is ideally suitable for medium and low output tape extrusion plants. It winds precision cross wound packages with fair tension regulation over the built up diameter.
Some characteristic features of the precision winding machines are:
- High precision traverse mechanism.
- Frictionfree drive of winder head and traverse mechanism by three-phase motor with constant speed via inductive torque transmission.
- Balancer for obtaining a constant tape tension; regulates the winding speed and adjusts it progressively to the extruder speed.
Technical Data:
| TAPE WIDTH | 1.5mm-3.5mm |
|---|---|
| TAPE MATERIAL | P.P./H.D.P.E. |
| TAPE TENSION CONTROL/ADJUSTMENT: | BALANCE WEIGHT |
| SPEED CONTROL | MAGNETIC DRIVE |
| DENIER RANGE | 300-2200 |
| TRAVERSE | 200mm (CUSTOMIZABLE) |
| WINDING SPEED | 120-350 m/min. |
| CORE DIMENSIONS | ID: 32/35/37 mm OD:40 mm Length: 218/220 mm |
| STRUCTURE LAYOUT | 5 HIGH, 2/3/4/5 CROSS |
