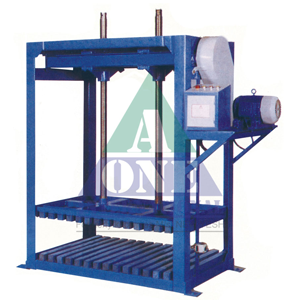

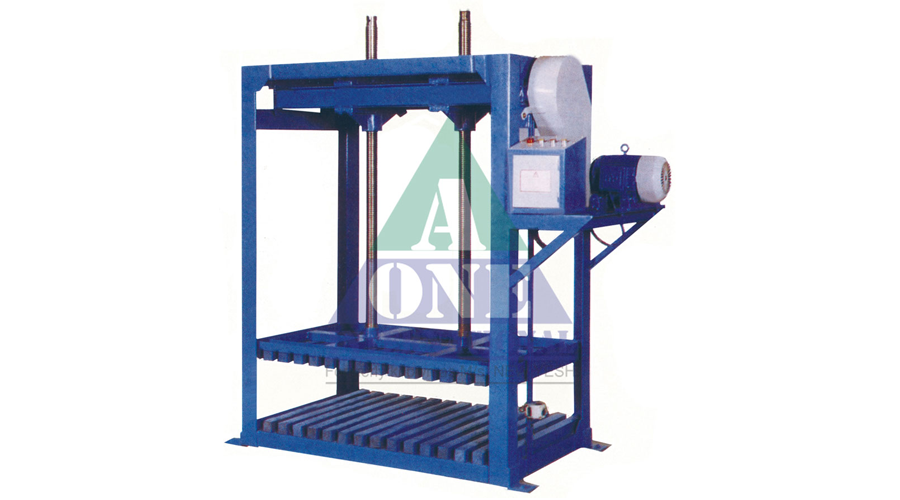

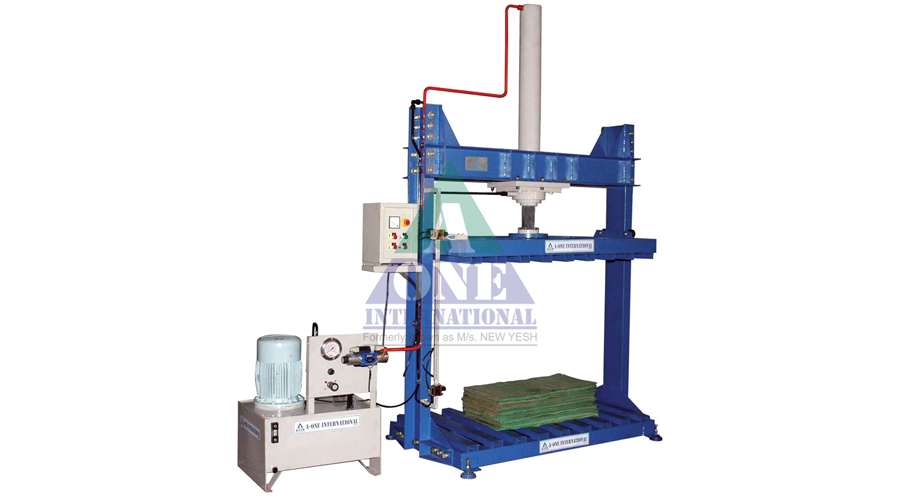

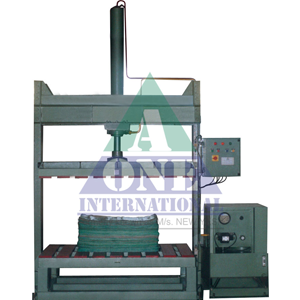

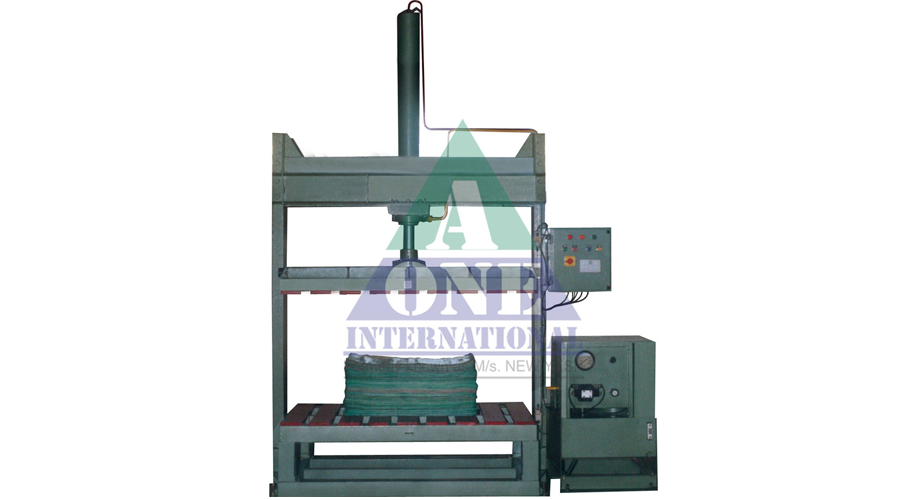

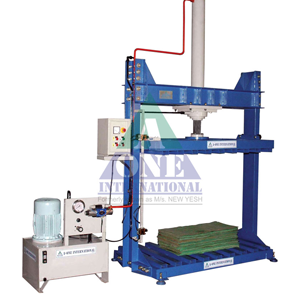

Hydraulic Bale Press

    Compact bales of bags made to facilitate save transportation cost, time & storage space.

    These presses are most suitable for very compact baling of :

  • HDPE, PP-Woven Sack Bags,
  • Jute bags and laminated jute bags
  • Coir Paddy straw
  • FIBC/Jumbo Bags.
  • Salient Features:

  • FOUR open guide pillars + Four guides rode for support of moving platen resulting in perfect alignment and safety of the hydraulic seals.
  • Hydraulic Double acting cylinder.
  • Slits on both axes provided for the perfect bale strapping. The moving platen can be stopped by means of height adjustable limit switch and Pressure switch. Available in a wide range of platform sizes, height & tonnage. Warranty against proper usage on all machine parts for 1 year from date of delivery.
  • Electric motor ABB, Siemens,
  • Pressure relief valve “POLYHYDRON” make.
  • Pressure gauge 0-250 bar/0-400 bar WIKA / Micro makes.
  • Solenoid operated directional control valve “UKEN”/”REXROTH” MAKE.



CAPACITY

20 TON

40 TON

60 TON

140 TON  (For F.I.B.C)

PLATEM SIZE (mm)

1200×900

1450x950

1450×950

1100 X 1100

Pressure (kg/cm2)

160

185

190

210

Mini. Bale height (mm)

100

150

300

300

NO.OF CYLINDER

ONE

ONE

ONE

ONE

MOTOR (HP)

5 HP

7.5 HP

10 HP

15

DAYLIGHT (mm)

1100

1400

1600

1800

×
