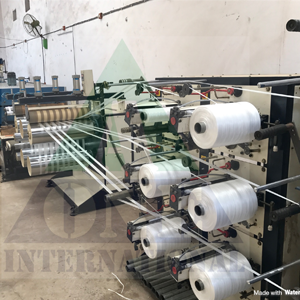

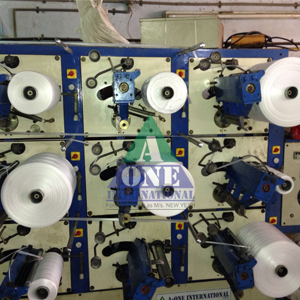

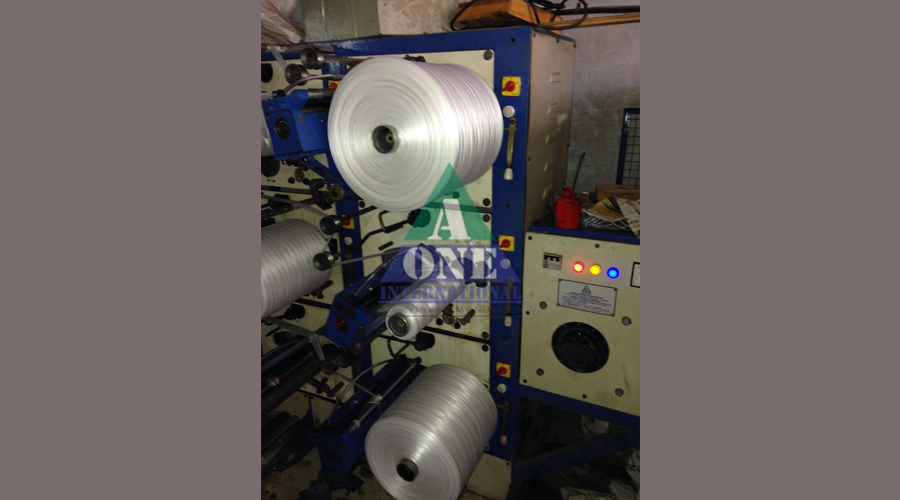

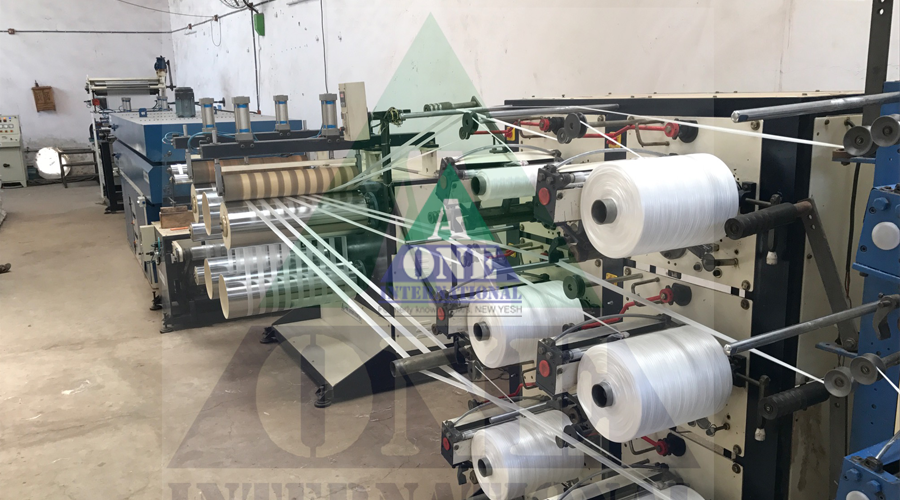

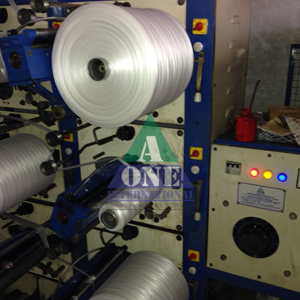

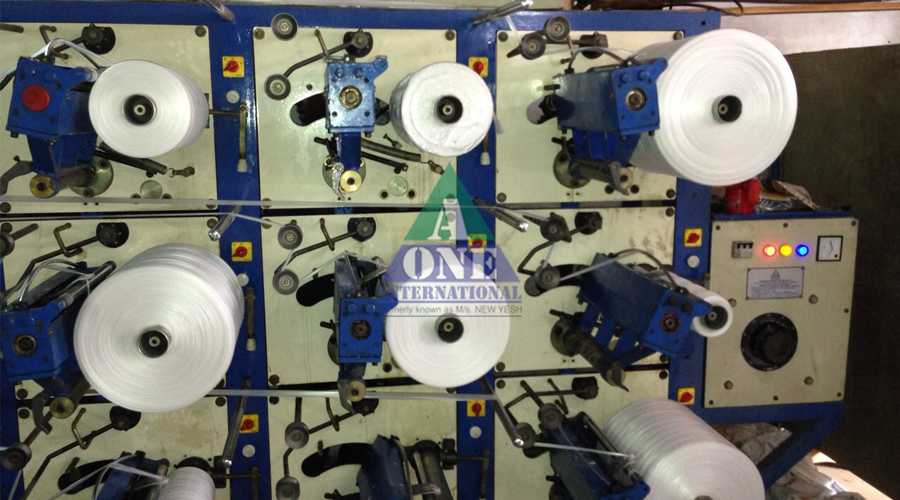

Heavy Duty/Jumbo Winder

The AHDW is a new heavy-duty/ Jumbo Winder,  that operates designed for producing large packages up to 18 kg (in polypropylene) online ON THE XTUSION PLANT. The winders operate accordance to tying twine and baler twine, Dan line.

APPLICATION:

  • Baler twine
  • Dan line.

FEATURES:

  • Precision cross winding
  • Individual on/off switch with speed controller for every spindle.
  • Feed from direct extruder machine.
  • Traverse cam is made from hardened steel for a long life
  • Winding tension is adjustable through a spring loaded dancer arm
  • Individual traverse system
  • Heavy duty 3 phase torque motor
  • Heavy duty timing belt, pulley & gear system drive
  • Low Noise level
  • Low energy consumption

TECHNICAL DATA (Combination of all maximum values is not possible.)



Winding process

Cross winding

Frame

3-tier

Winding speed Max.

200 m/min

Winding ratio

MECHANICAL gears

Traverse length Max.

300 mm

Package diameter Max.

Up to 300 mm

Tubes ID

54 mm X 60 mm (ID X OD) Length: 350 mm



THE MACHNE CAN ALSO BE CUSTOMISED AS PER CLINET’S REQUEST



×
